How to Cut 30% Lead Time on Custom Complex Parts: A Guide to 5-Axis CNC Manufacturing
Introduction
In the realms of aerospace machining trends and medical device manufacturing, engineers are confronted with unprecedented challenges. This is because the complexity of the manufactured part is increasing. In many cases, the traditional approach to machine complex geometry with a 3-axis machine is not meeting the tolerance requirements. This is causing production costs to skyrocket. This is not an acceptable situation. At the heart of this problem is the inability to bridge the gap between the digital world and the physical world. This is the problem referred to as the digital prototyping gap.
This is where this article will explore how the use of 5-axis CNC machining can be used to bridge this gap and provide a solution to this problem. This will be done by highlighting how this approach can be used to machine complex geometry with a single setup. This will be done to show how this approach can be used to optimize the critical pathway to machine complex geometry.
Why is Precision Engineering the Core of Complex Component Design?
Precision engineering is considered the primary discipline for complex component design. This is so because it goes beyond merely holding a tolerance to include the overall control of geometric shape, surface finish, and material properties throughout the entire manufacturing process. In complex components characterized by deep cavities, organic shapes, or complex angles, errors are inevitable in traditional machining processes. However, 5-axis simultaneous machining technology eliminates these traditional machining blind spots by controlling tool direction to machine all features relative to a single datum. This technology is important for achieving precision complex components that can function as required. However, achieving precision complex components from a single unit to mass production involves a robust systemic approach such as IATF 16949 quality management for manufacturers.
- The Foundation of Predictable Performance: The functional performance of a complex component, for instance, an aerodynamic turbine blade or a bearing surface in an orthopedic device, hinges completely on its geometry. Fancy engineering is what makes the physical object exactly like the digital one. Any discrepancy in surface finish or wall thickness or even location of the feature can lead to very serious consequences. Using 5-axis technology, the tool path is consistent and tool angles are optimal for machining, which leads to a very good surface finish and high accuracy. We can lay the baseline for predictable and reliable performance on these.
- Enabling Design Freedom Through Advanced Kinematics: Manufacturability often limits component design. Sometimes, designers have to let go of perfect organic shapes because they are ‘unmachinable’ on a 3-axis machine. This is the point where 5-axis machining technology scores a big win. The machine tool can be oriented to the workpiece from any direction. It is possible to make the complex shapes like undercuts and free-form surfaces without any loss in tool rigidity or flexibility. This gives design engineers a lot of liberty to come up with lighter, stronger, and more efficient components that have never been thought of before.
- Systematizing Quality from Prototype to Production: While it may take considerable skill to obtain precision on just one prototype, it takes an entirely different level of skill to ensure that the same level of precision is obtained across the thousands of production units. This is where the importance of a quality management system comes in. A manufacturer who has obtained the IATF 16949 standard has systems in place for statistical process control, advanced metrology, and corrective action. This ensures that the precision obtained in the first article is not just a one-time event but becomes a guaranteed feature of every subsequent product.
How Do Multi-Axis Machining Services Optimize Production Efficiency?
Precision 5-axis services is the ideal method to maximize production efficiency by merging all the machining steps within a single operation, thereby eliminating non-value-added activities such as fixture changes and re-clamping. The use of shorter and stiffer tools allows for faster feeds and cuts without vibrations, which means an increase in speed and accuracy. This method is hardly visible technically, thus it reduces errors and accelerates the CAD-to-part process, which is very crucial in aerospace-grade machining.
1. The High Cost of Multiple Setups and Fixturing
In 3-axis machining, for instance, if you were to machine a complicated component like a turbine housing, you might need 4 to 5 individual set-ups, one for the top, one for each side, and special fixtures for any features that are at an angle. The tolerance stack-up from all these individual handlings is one of the major causes of error. However, multi-axis machining services completely eliminate this. By doing it all in one set-up, it completely eliminates the cost and time of fixture design and manufacturing, as well as any alignment errors, and greatly reduces the total touch labor, providing a big boost to your manufacturing efficiency.
2. Enhanced Machining Dynamics and Tool Life
Productivity efficiency in machining isn’t just about reducing setup time; it’s about improving the machining cut as well. This is where 5-axis machining shines, as the piece can be oriented to achieve the most favorable cutting direction. This allows for the use of the tool’s side cutting edge for flank milling operations, which are much more efficient than machining with just the tip. This also enables shorter tool extensions to be used, which greatly improves rigidity. This means heavier cuts can be taken at faster feed rates without chattering, reducing overall machining time while improving finish and tool life. This is a compounding factor in reducing overall cost per piece.
3. Streamlined Workflow and Reduced Administrative Overhead
Efficiency is not just limited to machine operations but extends into project management as well. With a dedicated 5-axis CNC machining service provider, there are streamlined workflows for complex parts. From digital prototyping review all the way to the final inspection, there are significant administrative overhead reductions. This is especially important for the client’s engineering team, as they can spend more time on core competencies and less time on administrative tasks. The overall efficiency gained by consolidating all aspects of the machining process into one capable partner is a significant efficiency gain that is often overlooked in terms of hourly rate comparisons.
What Role Does Smart Factory Solutions Play in Industrial Innovation?
Smart factories rely on sensors fitted on the 5-axis machines to gather enormous amounts of data on spindle load, axis vibration, temperature, and tool wear. This data is then analyzed with the help of AI and machine learning algorithms that perform predictive analytics. Predictive analytics support activities like predictive maintenance (repair of machines before a failure happens) and adaptive control (automatic variation of feed rates depending on the cutting conditions). In case chatter is detected in the machine tool due to vibration, the system can automatically reduce the feed rate to prevent damage to the tool and the machined parts. This way, the production process is not only protected, but also machine uptime is maximized.

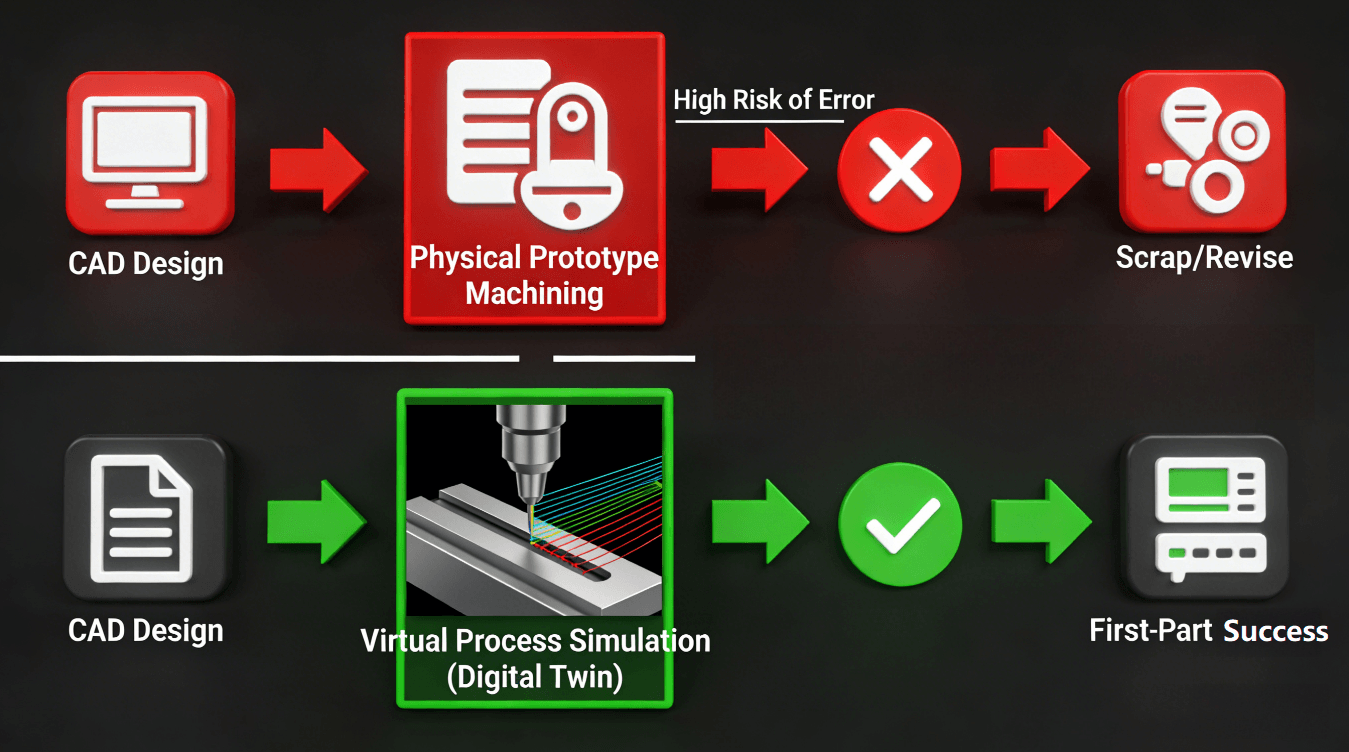

1. Digital Twins and Virtual Process Validation
A digital twin is a virtual model of the machining process. It is dynamic in nature. Engineers can import the CAD model of the part, the machine tool model, and the fixture model into a simulation toolset. This would create a digital twin of the machining process. This would help in the extensive testing of 5-axis toolpaths for potential collisions, validation of the fixturing strategy, and analysis of cutting forces. In this way, potential issues like a toolholder crashing into a part feature can be addressed in the virtual world. This would save expensive scrap, machine tool damage, and project delays, especially in the production of novel and complex parts.
2. Real-Time Data and Predictive Analytics
Smart factories use the sensors on the 5-axis machines to collect terabytes of data on spindle load, axis vibration, temperature, and tool wear. The data collected helps in predictive analytics using AI and machine learning algorithms. Predictive analytics helps in predictive maintenance (maintenance of machines before failure occurs), and adaptive control (automatic adjustment of feed rates depending on the conditions of cutting). For example, if chatter occurs in the machine tool due to vibration, the system can automatically slow the feed rate to protect the tool and the parts being machined. This helps in maximizing machine uptime and efficiency in the production process. This data-driven approach helps in maintaining the integrity of aerospace machining trends.
3. The Integrated Digital Thread for Lifecycle Management
The ultimate solution to the problem of the smart factory is an integrated digital thread that encompasses all aspects of a product lifecycle. This means that the original CAD file is integrated with the product’s CAM programming, which is then implemented by the CNC machine. At the same time, inspection results are fed back to ensure validation, and measurement results are tied to the serial number of the product. This is, as highlighted by the NIST smart manufacturing guide, an important feature that enhances the resilience of the supply chain. This is because it creates an immutable quality audit trail, facilitates rapid root cause analysis to determine the source of nonconformance, and enables continuous improvement to the product and process.
Why AS9100D Certification is Vital for Aerospace Machining Trends?
In the ever-changing world of aerospace machining trends, AS9100D certification is not just a ‘nice to have’ but a ‘need to have.’ This is because AS9100D certification, based on the industry-standard ISO 9001 framework, goes beyond just providing a framework for industry suppliers to adhere to. In the world of custom complex parts such as turbine blades, engine mounts, and structural airframe components, there can be no room for error. AS9100D certification is all about providing a framework for suppliers to have a complete material traceability system in place for all components, stringent first article inspection requirements, and mitigation of all potential failure modes. In other words, AS9100D certification is all about providing a framework for suppliers to have a system in place for their 5-axis CNC machining processes to deliver parts that are both safe and fit for purpose.
1. Ensuring Absolute Material Integrity and Traceability
In aerospace, not only is the geometry of a part critical to performance, but the material integrity is equally important. AS9100D stipulates that all components have to be traced back to their specific material heat lot. This means that if a problem is identified with a material, the specific batch can be identified with absolute precision. This is critical to managing the enormous risk involved with aerospace applications and is one of the primary reasons why OEMs demand this level of certification from their precision complex components suppliers.
2. Systematizing Risk Management and FOD Prevention
Aerospace manufacturing is all about exhaustive risk mitigation. AS9100D has clauses for documented processes for risk management for all processes, including design, purchasing, production, and shipping. There are clauses for FOD prevention as well. FOD stands for foreign object debris. Clean room operations are required for FOD prevention. There are clauses for inspection operations as well to ensure there are no foreign objects in the finished assembly. For a 5-axis machining supplier, their entire operation, from the receiving dock to the shipping department, is under a controlled and auditable process to eliminate all possibilities of human error or oversight that may result in catastrophic failure of a part.
3. Building Trust in a High-Stakes Supply Chain
AS9100D certification is most certainly a significant assurance of reliability. When an aerospace engineering team is considering a supplier who holds this level of certification, it means the team is selecting a company whose whole work environment is centered around the stringent quality mentality of the aerospace industry. Not just the right, but a fundamental, safety-critical element is being produced by such a company. Thanks to such a mindset, the OEMs can rely so much on the suppliers’ internal quality mechanisms that they do not feel the need to constantly come in and check them, thus facilitating the qualification process for new, custom, and complex parts.
How to Leverage Online CNC Machining Quote for Rapid Decision Making?
The online CNC machining quote has the power to change the process of decision-making by providing instant and transparent cost and lead time analysis through the process of AI-based 3D file upload. This will allow the real-time evaluation of design decisions and will also provide the flexibility to carry out agile manufacturing by considering cost and time factors. Finally, the instant 5-axis machining quote will provide a technical consultation based on DFM, which will allow the transformation of ideas and concepts into tangible products.
- Instant Feedback and Design Iteration: The strength of an online quote system is its ability to deliver instant results. The engineer can upload his design late at night, and by the next morning, he has a detailed cost breakdown. This instant feedback is critical during the digital prototyping/design iteration phase. If the costs are too high, he can instantly start thinking about what he can do to bring down costs. Can he switch to aluminum instead of titanium? Can he loosen up one of his non-critical tolerances by 0.05mm to significantly cut down machining time? This ability to iterate and cut down costs is critical when the design is still in its digital phase.
- Transparency and Benchmarking: A high-quality online 5-axis CNC machining services quote is not just a price. It is a price that offers transparency on cost elements such as material, machine time, setup, and finishing. This allows procurement teams and engineers to properly benchmark different suppliers based on accurate information. This transparency takes the mystery out of the manufacturing process and creates a more collaborative supplier relationship as both parties are working off the same data set. This is a fundamental element of effective supply chain management for advanced manufacturers.
- The Quote as a Gateway to Expert Collaboration: The most advanced online platforms do not simply display the automated price; they make the customer earn it by passing the technical review. After the instant quote has been generated, the model is reviewed by the manufacturing engineer to provide the customer with free DFM analysis. The report may suggest that the customer should modify the deep wall by adding a draft, make the fillet larger for tool access, or even consider using a more economical material. Instead of just giving the price, the customer is provided with a plan for refining the part in terms of manufacturing, cost, and performance.
What Are the Long-Term Benefits of 5-Axis Complex Geometry Machining?
The advantages of investing in 5-axis complex geometry machining extend beyond the obvious advantages of reduced lead time and cost per piece. This capability provides a long-term competitive advantage to an organization, allowing it to innovate its products, secure its supply chain, and future-proof its manufacturing process. The organization can now respond to aerospace machining trends and medical device manufacturing, which are beyond its competitors. By becoming experts in manufacturing complex components, an organization can charge premium prices for its products, attract top engineering brains, and become known as an industry leader. This is, as discussed in various studies on evolution, an essential factor for any organization to maintain its share of the market.
1. Unlocking Sustainable Innovation and Market Leadership
The power to reliably produce any possible geometry gives R&D teams freedom to design. They’re no longer burdened by “how will we make this?” and can devote all time to “what’s the best design for performance?” This freedom to design is the power to sustainably innovate. A company able to rapidly prototype and produce never-before-seen, high-performance components such as topology-optimized brackets or integrally bladed rotors (blisks) will be able to launch the market’s best products first. This first-mover advantage and the power to solve long-unanswerable engineering questions will cement a company’s position as a market leader, not just a player.
2. Building Supply Chain Resilience and In-House Expertise
Leaning on outside specialists for all complex machining creates a supply chain risk. Investing in 5-axis machining capability in-house or with a trusted partner builds supply chain resilience. This minimizes reliance on a brittle supply chain network and keeps the intellectual property close. Additionally, the development of in-house expertise in operating 5-axis machines creates a high-skilled workforce and a culture of excellence. This in-house capability represents a powerful and difficult-to-reproduce asset.
3. Future-Proofing for the Next Generation of Manufacturing
5-axis machining is the basic technology for the future of advanced manufacturing. It is the foundation upon which smart manufacturing solutions, additive hybrid manufacturing, and artificial intelligence-based optimization will be developed. Therefore, organizations that have successfully implemented 5-axis machining are essentially setting themselves up for the next big leap in technology, including the potential for hybrid machining involving 5-axis milling and directed energy deposition for repairing or modifying high-value parts. This is essentially a form of future-proofing, ensuring the organization’s manufacturing base will always be relevant and will have the capability to meet the unknown requirements of the future market.
Conclusion
The key value of advanced manufacturing is that it makes possible the reliable production of highly complex design embodiments as durable manufacturing products. When deciding on combining 5-axis CNC manufacturing technology at its most suitable application level with very high-quality standards such as AS9100D, companies can actually make a double win scenario happen. First, they will be able to unlock the machines’ full potentials in complex geometry machining and second, they will have significant improvements in production efficiency, cost control, and time to market. This way they can move from being simply cost centers to becoming strategic accelerators where on one hand innovation can flourish, risks on the other hand, can be minimized and a sustained competitive advantage can be achieved in the most challenging sectors.
FAQs
Q: How does the 5-axis CNC machining service help in achieving the accuracy of custom complex parts?
A: The 5-axis CNC machining service helps in achieving the accuracy of custom complex parts because the machining can be done from any angle in a single setup. This helps in avoiding the accumulation of errors resulting from multiple fixture changes. The accuracy helps in achieving the required quality in custom complex parts, especially in aerospace and medical industries.
Q: What is the impact of 5-axis CNC manufacturing on the overall lead times?
A: The 5-axis CNC manufacturing helps in reducing the overall production time by 30-50% because the machining process involves the consolidation of multiple operations into one. The process helps in avoiding the use of complex fixtures and facilitates the transition from digital prototyping to the actual parts.
Q: Why should aerospace engineering teams partner up with AS9100D-certified multi-axis machining service providers?
A: AS9100D stands for the highest standard of quality in aerospace with the products being 100% traceable all the way back to the raw materials & managing the risks. By working with AS9100D-certified suppliers, companies can rest assured that their complex geometry cutting is done through a process that has been verified to be both dependable and consistent. This is a requirement that cannot be compromised in aerospace engineering since performance failure is absolutely unbearable.
Q: How does 5-axis technology address complex geometry machining when 3-axis machining cannot?
A: 5-axis technology can move the tool along five different axes, thus it can access the innermost parts of the complex components, and machine the features which a 3-axis machining center could not even reach. This is, in essence, the core of industrial innovation.
Q: Is it possible to obtain an online CNC machining quote for precision complex components?
A: Yes. Today’s technology makes it possible to obtain an online CNC machining quote, which utilizes Artificial Intelligence to analyze a 3D CAD file. This offers a gateway to the latest technology and smart manufacturing capabilities.
